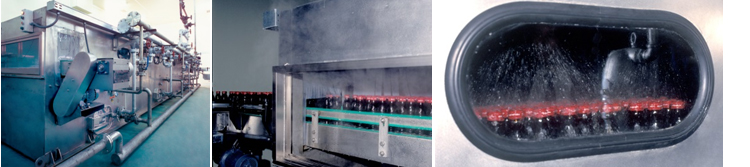

PASTEURIZER, WARMER & COOLE

Lightening of machine and product versatillity are achieved with a mat top chain feeding system. Double and sinngle deck models meet any space and capacity requirements. Effective sparay nozzle systems are used

• FEATURES

1. STABLE FEEDING MECHANISN

Comstant speed feeding mechanism using variable reducer ensures unvarying produt treatment time. Treatment time is also easily changed.

2. TROUBLE FREE INFEED AND DISCHRGE

As comb shped dead plates are used between product feeding convyor and plastic rib belt, produt can be smoothly transterred and trouble free infeed and discharge are achieved evend for products such as cans and small bottler with small body diameters.

3. SUITABLE FOR VARIOUS PRODUCT

The mat top chain because of its small rib width, eliminates fallen bottles owing to jamming on the chain allowing handling of various products in small to large bottles

4. OPTIMAL CUSTRUCTION FOR MEETING

The module designed mat top chain allows optimal size m/c to be construction for chain width and length meeting product shape and treatment time

5. PROUDUCTION SPEED

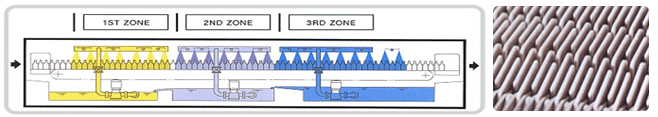

Heat regenerative method is used when by heat gained at the precool zone is recycled to warm the products at the preheat zone. Energy and water consumption are thus effectively minimized

6. EASY MAINTENNANCE

Maintenance, including checking and part exchange, is easy because of the extremely simple construction of the feeding mechanism

MAT TOP CHAIN FEEDING SYSTEM



1. Chain surface is constructed with precisely assembled molded ribs.
2. Excellent clean ability offers permanent hygiene.
3. Lighweight plastic rid allow compact driving section.
4. Chain modules are easily disassembled.
